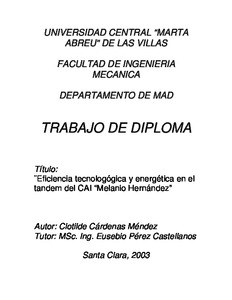

Eficiencia tecnologógica y energética en el tandem del CAI “Melanio Hernández"
Archivos
Fecha
2003-06-20
Autores
Cárdenas Méndez, Clotilde
Título de la revista
ISSN de la revista
Título del volumen
Editor
Universidad Central "Marta Abreu" de Las Villas
Resumen
El objeto de estudio de este trabajo fue el CAI “Melanio Hernández “ubicado en la
provincia de Sancti Spíritus, municipio Taguasco; con vistas a mejorar la eficiencia
tecnológica y mecánica de este ingenio. En este trabajo se llevaron a cabo varias
mediciones en el área de manipulación, preparación y tandem. Esto se realizó para la
caña azucarera y para la caña energética aunque de esta última se obtuvieron muy
pocos datos debido a las pocas horas de molida de la misma. En el laboratorio se
obtuvieron los resultados de fibra de entrada, bagazo % caña, humedades de salida y fibra dura/meollo. Como resultado final se realizó un análisis económico sobre la incidencia económica en una zafra debida al incremento en las pérdidas de pol en bagazo. Con respecto a la eficiencia mecánica se llevaron a cabo los cálculos de potencia por el Diagnóstico desarrollado por Pérez y se compararon con las reales tomadas en el tandem para los motores 3 y 1. Por otra parte se calculó la capacidad por el método del manual de Planta Moledora y por el desarrollado por Pérez se comparó con la real del tandem. y se hizo un análisis acerca de la influencia de algunas variables como el diámetro de las mazas, la velocidad angular y la fuerza hidráulica total sobre el consumo de potencia, la capacidad , los consumos específicos y la eficiencia mecánica.
The object of study of this work was the sugar industry "Melanio Hernández " located in the county of Sancti Spíritus, municipality Taguasco, in order to improve their technological efficiency and mechanics . In this work they were carried out several measurements in the area of manipulation, preparation and mill. This was carried out for the sugar cane and for the energy cane although very few data were obtained of this one, due to the few hours of milling operation with this tipe of cane. In the laboratory the results of entrance fiber, bagasse % cane, exit humidities and others were obtained. As a final result an analysis about the economic incidence in this year due to the increment in the pol losses in bagasse was carried out. With regard to the mechanical efficiency the calculations of power were made by the Diagnosis developed by Pérez and they were compared with the real ones taken in the tandem for the motors 3 and 1. On the other hand the capacity was calculated by the method of the Manual de Planta Moledora and for the one developed by Pérez and they was compared with the real of the tandem. On the other hand an analysis was made about the influence of some variables as the diameter of the rolls , the angular speed and the total hydraulic force over the consumption of power, the capacity, the specific consumptions and the mechanical efficiency.
The object of study of this work was the sugar industry "Melanio Hernández " located in the county of Sancti Spíritus, municipality Taguasco, in order to improve their technological efficiency and mechanics . In this work they were carried out several measurements in the area of manipulation, preparation and mill. This was carried out for the sugar cane and for the energy cane although very few data were obtained of this one, due to the few hours of milling operation with this tipe of cane. In the laboratory the results of entrance fiber, bagasse % cane, exit humidities and others were obtained. As a final result an analysis about the economic incidence in this year due to the increment in the pol losses in bagasse was carried out. With regard to the mechanical efficiency the calculations of power were made by the Diagnosis developed by Pérez and they were compared with the real ones taken in the tandem for the motors 3 and 1. On the other hand the capacity was calculated by the method of the Manual de Planta Moledora and for the one developed by Pérez and they was compared with the real of the tandem. On the other hand an analysis was made about the influence of some variables as the diameter of the rolls , the angular speed and the total hydraulic force over the consumption of power, the capacity, the specific consumptions and the mechanical efficiency.
Descripción
Palabras clave
Eficiencia Energética
