Analysis for the integration of solar energy to sugarcane bagasse cogeneration power plant in the Cuban context: a case study

Vista sencilla de ítem
dc.contributor.authorHerrera Moya, Idalberto
dc.contributor.authorRojas Acosta, Ariam
dc.contributor.authorVillardefrancos Bello, Frank Luis
dc.contributor.authorMalmquist, Anders
dc.contributor.authorWegener, Morizt
dc.contributor.departmentUniversidad Central "Marta Abreu" de Las Villas. Centro de Estudios y de Tecnologías Ambientales(CEETA)en_US
dc.contributor.departmentRoyal Institute of Technology, Stockholm, Swedenen_US
dc.contributor.departmente Royal Institute of Technology, Stockholm, Sweden, & Polytechnic University of Catalonia, Barcelona, Spain,en_US
dc.coverage.spatialWroclaw University of Science and Technology, Silesian University of Technology WROCLAW, Polonia.en_US
dc.date.accessioned2020-10-13T17:00:17Z
dc.date.available2020-10-13T17:00:17Z
dc.date.issued2019-06-27
dc.description.abstractCuba is a small island located in the Caribbean Sea, with an extension of 109,886 km² and a population of about 11,000,000 of which 98.2% have access to electric energy services. The national electric network has a power capacity of 7,741 MW, but only 4.3% is generated from Renewable Energy Sources (RES). In this context a new policy for the development of RES has been launched by the government, in order to increase its share in the energy matrix and decrease energy cost. A special contribution is expected from sugarcane bagasse cogeneration power plants. The installed capacity in this sector is 470 MW, it is expected to rise up to 872 MW from 2018 to 2030, generating electricity at a cost lower than 0.15 USD/kWh. To this purpose, 25 facilities will be upgraded to bioelectric plants with an expected annual generation of 4,300 GWh, avoiding 3.65 MMtonCO₂/year. For modernizing the energy scheme of sugar cane enterprises many technical possibilities exist, for example: increase working pressure, increase working temperature, use the maximum amount of residue as fuel, etc. Economic aspects should be considered, in order to achieve low energy costs in a sustainable way. One of the problem related to the power generation in the sugar industry is the seasonality, as the facilities must stop once the harvesting period ends due to the lack of fuel (bagasse). However, if some solar energy could be added to the process some bagasse could be stored and used to run the power plants off season and hence improve their economic performance. In this work the integration of solar energy to a small sugarcane bagasse cogeneration power plant was studied. The cane crushing capacity is 2,300 TCD (Tonnes of Cane/Day) and the crushing season is from December to April. Every season 60,400 tons of bagasse are available. The process steam pressure is 2.5 bar(abs). A parabolic solar field for heating the boiler feed water was studied. With a field of 34,500 m2, the facility could run for two month off season, with an internal return rate of 6% and a payback period of 10 years. Additional studies are needed to improve the economic indicators.en_US
dc.identifier.citation[1] Cleveland CJ, Ayres RU, Costanza R, Goldemberg J, Ilic MD, Jochem E, et al. Encyclopedia of energy: Elsevier Academic Press; 2004. [2] Suárez JA, Beatón PA, Escalona RF, Montero OP. Energy, environment and development in Cuba. Renewable and Sustainable Energy Reviews. 2012;16:2724-31. [3] MINEM. Política para el desarrollo perspectivo de las fuentes renovables y el uso eficiente de la energía. 2015. [4] Bai Z, Liu Q, Lei J, Wang X, Sun J, Jin H. Thermodynamic evaluation of a novel solar-biomass hybrid power generation system. Energy Conversion and Management. 2017;142:296-306. [5] Sahoo U, Kumar R, Pant PC, Chaudhary R. Resource assessment for hybrid solar-biomass power plant and its thermodynamic evaluation in India. Solar Energy. 2016;139:47-57. [6] EIA. Cuba's Key Energy Statistics. EIA2016. [7] Burin EK, Vogel T, Multhaupt S, Thelen A, Oeljeklaus G, Görner K, et al. Thermodynamic and economic evaluation of a solar aided sugarcane bagasse cogeneration power plant. Energy. 2016;117:416-28. [8] Nations U. Trading Opportunities for Organic Food Products from Developing Countries; United. New York, NY, USA; Geneva, Switzerland2004. [9] Alba DS. Evaluación de Alternativas de Cogeneración en la UEB Central Carlos Baliño: Universidad Central ”Marta Abreu” De Las Villas, Santa Clara, Cuba,; 2014. [10] Hidalgo Cebrián L. Estudio técnico-económico de una central híbrida solar-ciclo combinado (ISCC). 2012. [11] EPA. Factor Information REtrieval (FIRE) Software. Technology Transfer Network Clearinghouse for Inventories & Emissions Factors 2004. [12] Martínez L. Conjunto de alternativas tecnológicas para la ingeniería conceptual del estudio de oportunidad de la conversión en bioeléctrica del central George Washington. Santa Clara: Universidad Central “Marta Abreu” de Las Villas; 2017.en_US
dc.identifier.isbn978-83-61506-51-5en_US
dc.identifier.urihttps://dspace.uclv.edu.cu/handle/123456789/12547
dc.language.isoen_USen_US
dc.relation.conferenceECOS-2019en_US
dc.rightsEste documento es Propiedad Patrimonial de Royal Institute of Technology, Stockholm, Swedense y se socializa en este Repositorio gracias a la política de acceso abierto del Congreso ECOS 2019 -THE 32nd INTERNATIONAL CONFERENCE ON EFFICIENCY, COST, OPTIMIZATION, SIMULATION AND ENVIRONMENTAL IMPACT OF ENERGY SYSTEMS.en_US
dc.rights.holderUniversidad Central "Marta Abreu" de Las Villas. Centro de Estudios y de Tecnologías Ambientales(CEETA)en_US
dc.subjectIntegrationen_US
dc.subjectBiomassen_US
dc.subjectSolar Energyen_US
dc.subjectCogenerationen_US
dc.subjectPower Generationen_US
dc.titleAnalysis for the integration of solar energy to sugarcane bagasse cogeneration power plant in the Cuban context: a case studyen_US
dc.typeProceedingsen_US

Archivos

Bloque original
Mostrando 1 - 1 de 1
Miniatura
Nombre:

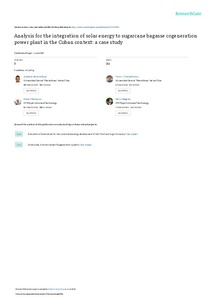

ECOS_2019_Integration_Solar_bagasse.pdf
